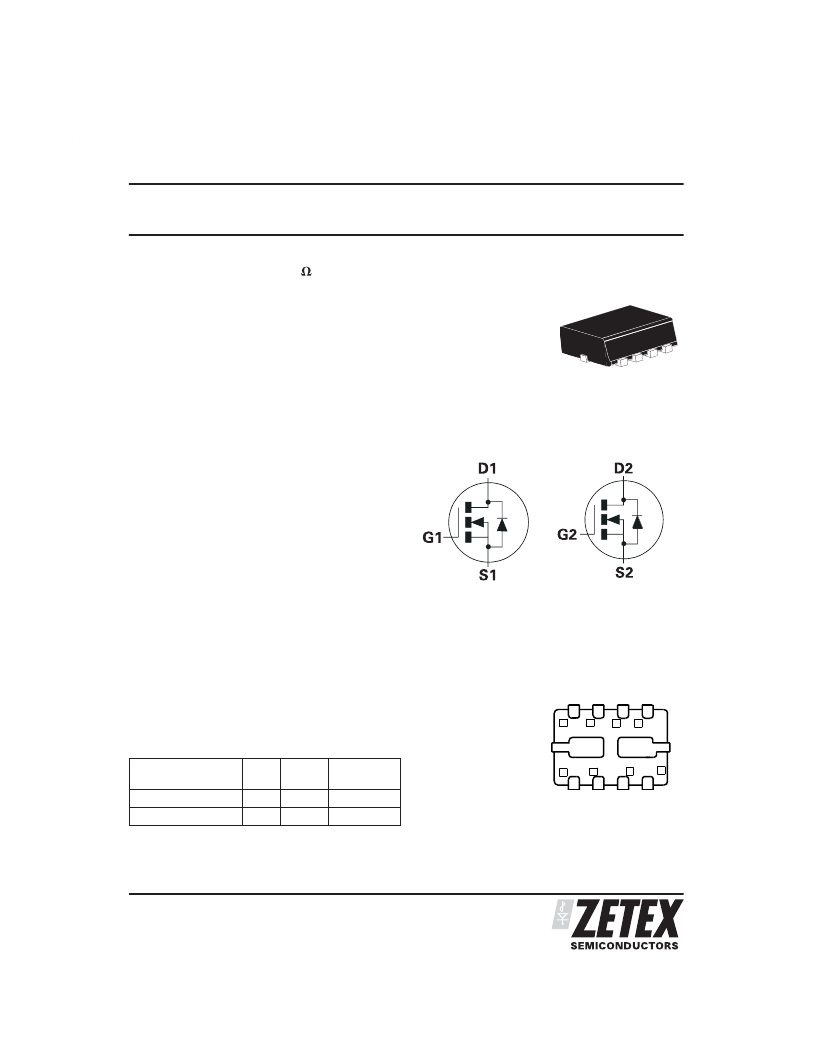

OBSOLETE - PLEASE USE ZXMN3AMCTA
ZXMN3AM832
MPPS? Miniature Package Power Solutions
DUAL 30V N-CHANNEL ENHANCEMENT MODE MOSFET
SUMMARY
V (BR)DSS = 30V; R DS(ON) = 0.12 ; I D = 3A
DESCRIPTION
Packaged in the new innovative 3mm x 2mm MLP(Micro Leaded Package)
outline this dual 30V N channel Trench MOSFET utilizes a unique structure
combining the benefits of Low on-resistance with fast switching speed. This
makes them ideal for high efficiency, low voltage power management
applications. Users will also gain several other key benefits :
Performance capability equivalent to much larger packages
Improved circuit efficiency & power levels
PCB area and device placement savings
Reduced component count
FEATURES
? Low On - Resistance
? Fast switching speed
? Low threshold
? Low gate drive
? 3mm x 2mm MLP
APPLICATIONS
? DC-DC Converters
? Power Management Functions
? Disconnection switches
3x2mm Dual Die MLP
PINOUT
? Motor Control
D2
5
D2
6
D1
7
D1
8
ORDERING INFORMATION
DEVICE
REEL
TAPE
QUANTITY
G2
S2
G1
S1
WIDTH
PER REEL
ZXMN3AM832TA
7 ’‘
8mm
3000 units
4
3
2
1
ZXMN3AM832TC
13’‘
8mm
10000 units
3mm x 2mm Dual MLP
underside view
DEVICE MARKING
DNB
ISSUE 1 - OCTOBER 2005
1
